Overview

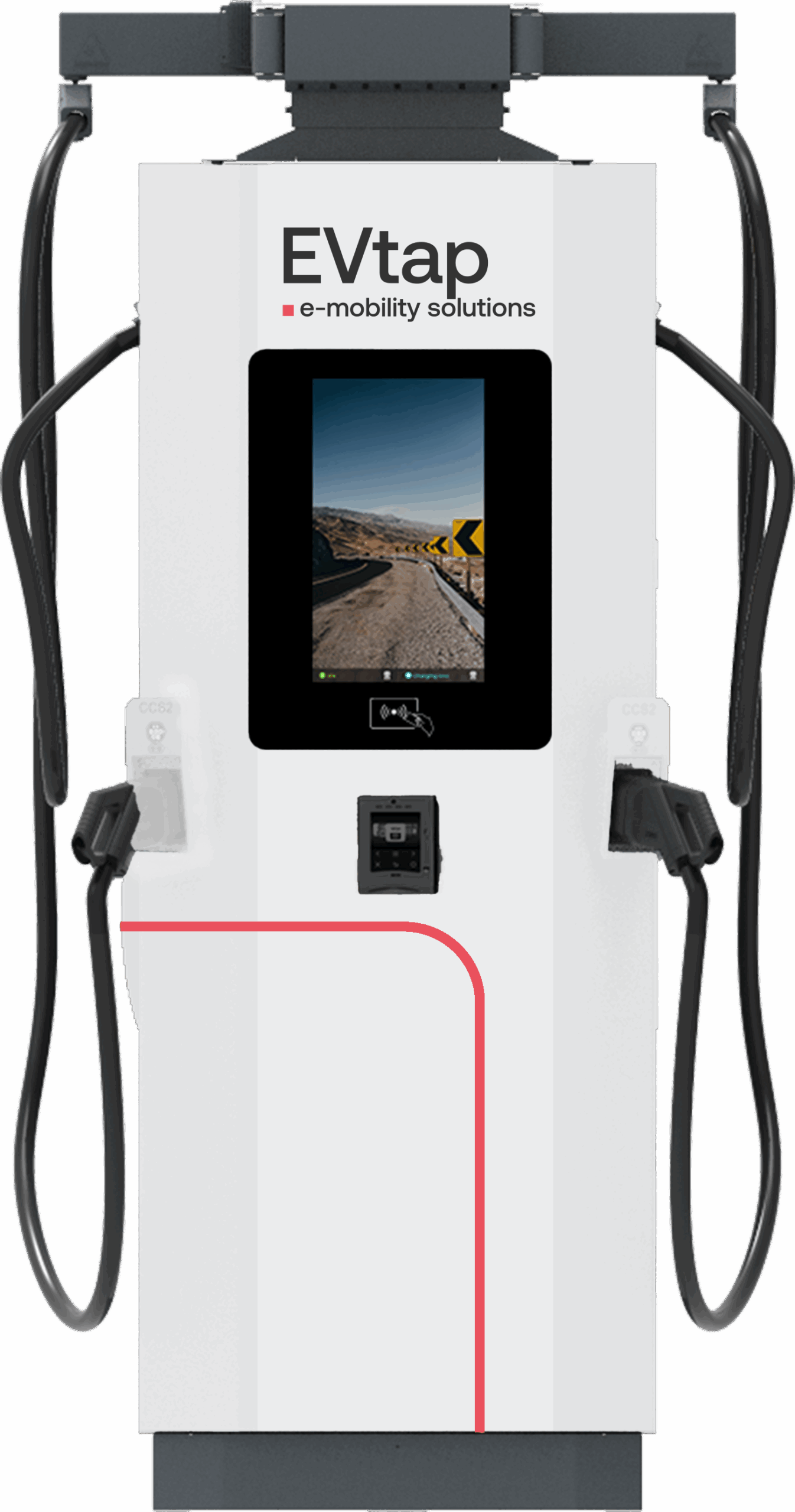

Most Advanced DC Charger
for Electrical Vehicles
Fast Charging Solutions for Charge Point Operators & Commercial EV Fleets
Experience smart and safe EV charging with the most advanced Fast DC charger. EVtap® the Fast DC Charger to ensure reliable charging of your electric vehicles with the greenest energy possible. Compatible with all PV systems (regardless of manufacturer).
- Simultaneous charge to up to 2 EVs or E-buses (Dual CCS-2)
- Easy to install with up to 180 kW DC charging power
- Plug & Charge ISO 15118-2
- Charge electric vehicles with 100% solar power
- Intelligent operation with PV self-consumption optimization, Dynamic load management, and Scheduled Charging
- Cable Length: 2 x 5m
- Easy HISbatt integration for small grid connections
- OCPP 1.6 and OCPP 2.0.1 support for easy backend integration
- Secure User Identification Via RFID or Mobile App or Payment Terminal
Whether you’re installing a private fast charger for your green logistics business or setting up a commercial EV charging station, the EVtap® Fast DC Charger is the perfect choice. Its simple design ensures easy handling, increased safety, and effortless operation. The EVtap® Fast DC Chargers are compatible with all electric and hybrid vehicles available on the European market, ensuring wide-ranging applicability.
Smart, Reliable and Fast EV DC Charger
The EVtap, designed by industry experts, is suited to withstand a wide range of European weather conditions, from extreme cold in the north to scorching heat in the south. The LCD screen provides live feedback to give your customers maximum control
- RCD inbuilt
- 4G modem inbuilt
- 8 inch LCD touchscreen display
- Metallic Frame
- RFID compatible
- MID metering
- OCPP 1.6J, 2.0.1 (fleet and billing software)
- Plug& Charge ISO 15118-2
Operating high-power fast-charging stations requires a significant grid connection, leading to considerable connection costs and high demand charges. With smaller grid connections, capacity is often quickly reached during peak hours each day, resulting in slower charging speeds and customer dissatisfaction. Moreover, upgrading the grid connection for existing facilities, such as supermarkets and industrial parks, is both complex and costly.
Are you interested in using
DC EV Charging Solutions for private use or
for your business?
Use our quick 5-minute form to get a detailed quote or get into contact with us. Our
modular solution fits your project perfectly and offers a wide range of applications.
Datasheet
EVtap® Fast DC Charger 180 kW
| Model | EVTAP-180K-5M-2C | Power Output | 180 kW (can be throttled) |
| Nominal Voltage | 400V ±15% VAC | Output Current | 250A MAX Per Connector |
| Efficiency | 400V ±15% VAC | Output Voltage| | 150 V to 1000 V |
| Frequency | 50/60 Hz | Power Factor | ≥ 0.99 |
| Charging Cables | 2 x 5m (CCS-2) | Payment Terminal | Payter, Nayax (Optional) |
| Display | 8“ TFT LCD Touch Screen | Push Buttons | Physical buttons for Multi-functional purpose, Emergency stop |
| Supporting Language | German, English, Spanish | Charge Options | Charge by duration, by energy, by amount |
| User Authentication | RFID Card, Mobile App, Remote Access |
| Network Interface | Ethernet, 4G | Web Portal Connection | Yes |
| LAN | Yes, RJ-45 | Software Update | Yes (web, App, USB) |
| OCPP | OCPP 1.6J, OCPP 2.0.1 | V2H & V2G Module | Optional |
| App Connection | Yes, with EVtap Connect App (iOS and Android) Access |
| Residual current operated device / RCD | 30mA AC & 6mA DC | Protection Type | IP55 |
| Electrical Protection | Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning Surge, Over temperature | Cooling | Forced Air |
| Model | Grey (Customizable) | Guarantee | 2 years |
| Operating Temperature | (-30℃ to +55℃) in operation, (-40℃ to +75℃) in storage | Altitude | Up to 2,000m |
| Dimension (mm) | 1870 x 806 x 700 mm | Air Humidity | 5% to 95% (non-condensing) |
| Net Weight | 450 kg | Standards & Certifications | CE, IEC/EN 61851-1, IEC/EN 61851-23, IEC/EN 61851-21-2 |
