HIS ENERGY · INTEGRATED BESS

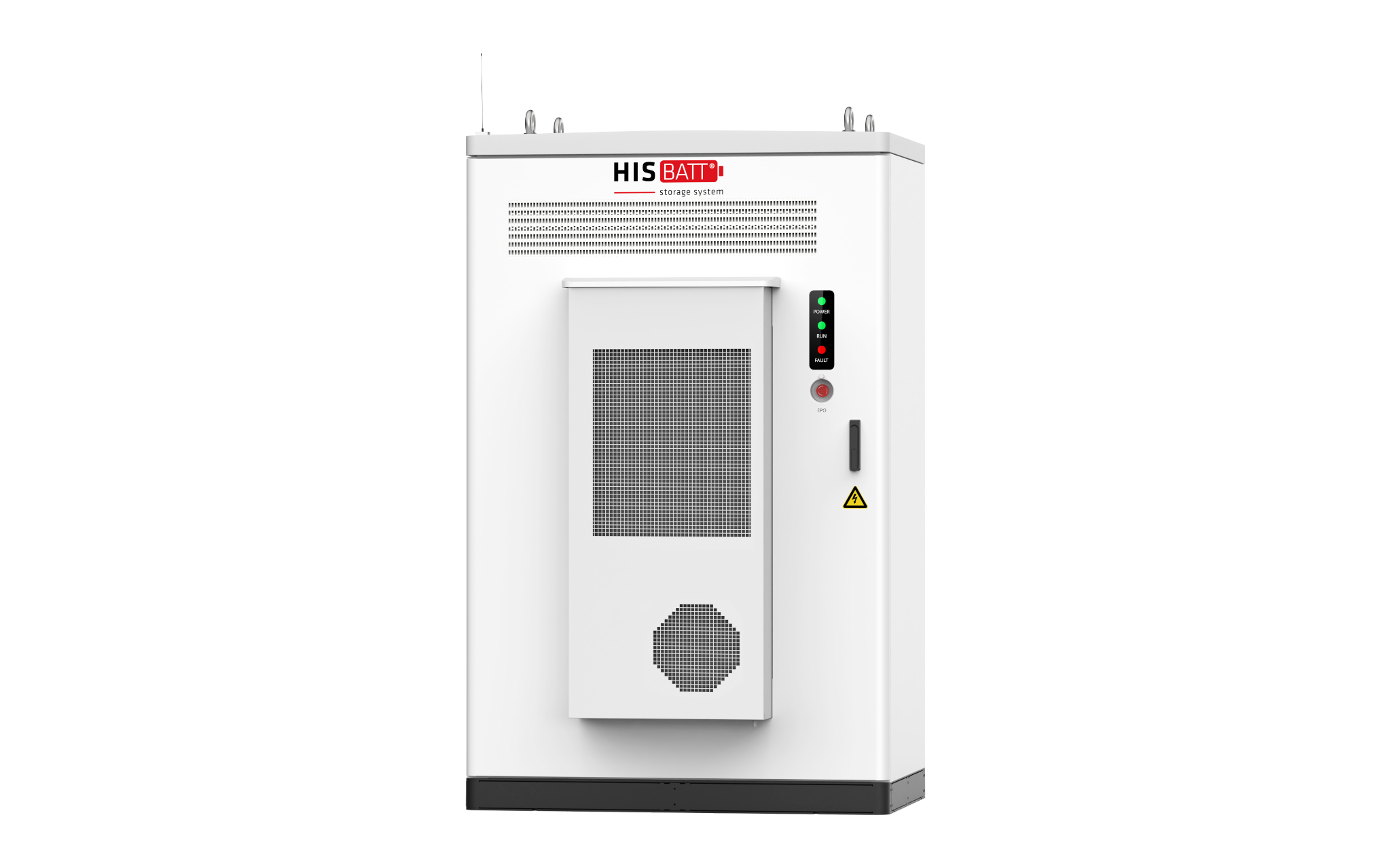

HISbatt 126A: 126.5 kWh commercial battery storage
A compact all-in-one BESS for commercial sites, solar PV and EV charging. LFP batteries, KACO power conversion and HIS energy management form a coordinated 400 V solution.
Product datasheets
Confirm the applicable revision and configuration with HIS for your project.
All technical downloads →High power in a compact footprint
The 126A suits smaller and medium-sized commercial sites with limited space and a relatively high power requirement. Assess peak shaving, PV self-consumption, dynamic tariffs and EV charging support against the actual load profile.
- Demand peaks with moderate energy requirements
- Daily shifting of surplus solar generation
- EV chargers behind a limited grid connection
- Scalable projects using multiple units
Technical specifications
- LFP cells: 150 Ah; DC range: 702–936 V
- Maximum PCS efficiency: 98.7%
- Cycle rating: 4,500 at 90% depth of discharge to 70% end-of-life capacity
- Three-level BMS; Ethernet and Modbus TCP
- Dimensions: 1,360 × 1,065 × 2,150 mm
- Weight: approximately 2,200 kg
Cycle life depends on temperature, loading and operation. The 92 kVA rating is apparent power; active power in kW is confirmed for the agreed operating conditions.
Safety and intelligent operation
Gas, smoke, temperature, humidity and water sensors support three-level battery monitoring. Integrated aerosol fire suppression forms part of the system safety concept. Site fire-protection requirements remain part of project planning.
The HIS Energy Controller and HIS EnergyFlow support operating strategies, monitoring and communications. Explore the German-developed HIS EMS for coordinated operation of compatible equipment.
Choose the right 400 V system
Compare the 126A with the 233 kWh HISbatt 233L and 261 kWh HISbatt 261L. Load duration, usable energy and charging windows determine the appropriate choice.

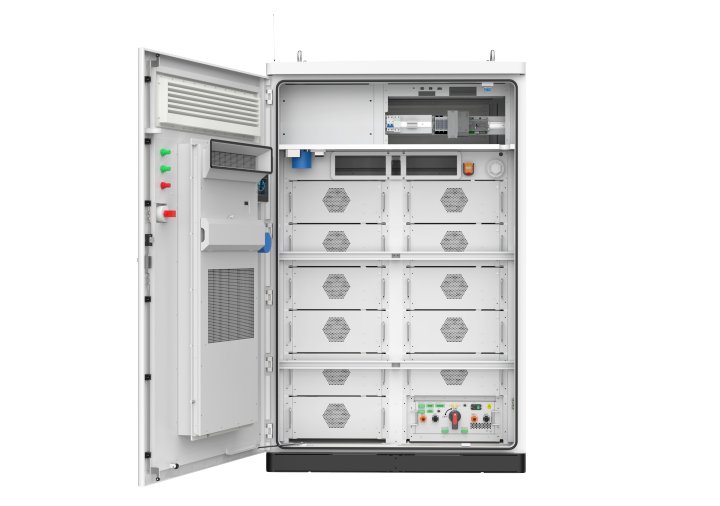

Inside the HISbatt 126A
Open-cabinet view showing the battery modules and control equipment.
Questions about this BESS solution
What information is needed to size a 126A project?
Start with your company, country and main objective. If available, add a 15-minute load profile, PV generation, grid and transformer details, installation conditions and timing. Final kW and kWh are not required for an initial enquiry.
Can the 126A support EV charging and peak shaving?
These are suitable applications for assessment. The design checks charger demand, grid limits, battery energy and the time available to recharge between peaks.
Does the battery automatically provide backup power?
No. Backup operation needs an appropriate inverter configuration, switching, protection and critical-load design. It must be confirmed for the individual project.
Tell us what you already know
Start with a short project enquiry. Our team will review the technical fit and identify the next steps. Technical details and file uploads are optional; you can request an email response before arranging a meeting.
Request a BESS project assessment
